TCPWave DDI - XGBoost Model


DNS is a central part of internet operations. The primary use of the DNS is to translate IP addresses to human-friendly names; this makes it a critical component of business operations. As a result, it has become the main target for malicious actors. The malicious actors have successfully deployed various DNS-based attacks, such as the application of Domain Generation Algorithms (DGA) to command and control a group of Internet of Things (IoT) or tunneling techniques. Despite the continuous progress in detecting DNS attacks, there are still weak spots in the network security infrastructure. Hence, it is imperative to implement new ways to analyze data, particularly machine learning (ML) algorithms. Various security teams urge to integrate ML-based DGA detection within the organizations that provide high-performance accuracy based on the data. TCPWave's DNS TITAN solution provides to combat and safeguards the DNS from the attacks. It uses In-House built tunnel detection Machine Learning (ML) algorithms trained using massive ~3.3M records and varied DNS data, thereby learning and detecting the malicious DNS traffic flowing through the DNS pathways in the enterprises. This white paper provides insights on how TCPWave's Threat Intelligence uses one of the ML models - XGBoost to detect and mitigate the DNS anomalies.

Machine Learning

It is one of the subsets of Artificial Intelligence (AI). It finishes the task of learning from data with specific inputs to the machine.

There are several stages in the ML lifecycle, and a few of the major ones are:



Data Management Collect, Clean, Visualize, and Feature Engineering the data.
Model Training Process in which the ML algorithm is fed with training data and learns the best fit from the data features.
Model Evaluation Process in which the ML model performance is evaluated based on specific metrics such as accuracy, precision, etc.
Model Deployment Process in which the ML model is integrated into an existing application.
Data Management

Dataset is one of the main components in building an ML model.

  • The data consists of different DGA families. The input dataset is split into training data and test data.
  • The training data consists of 2.1M data points, and the test data consists of 0.9M points.
Feature Engineering

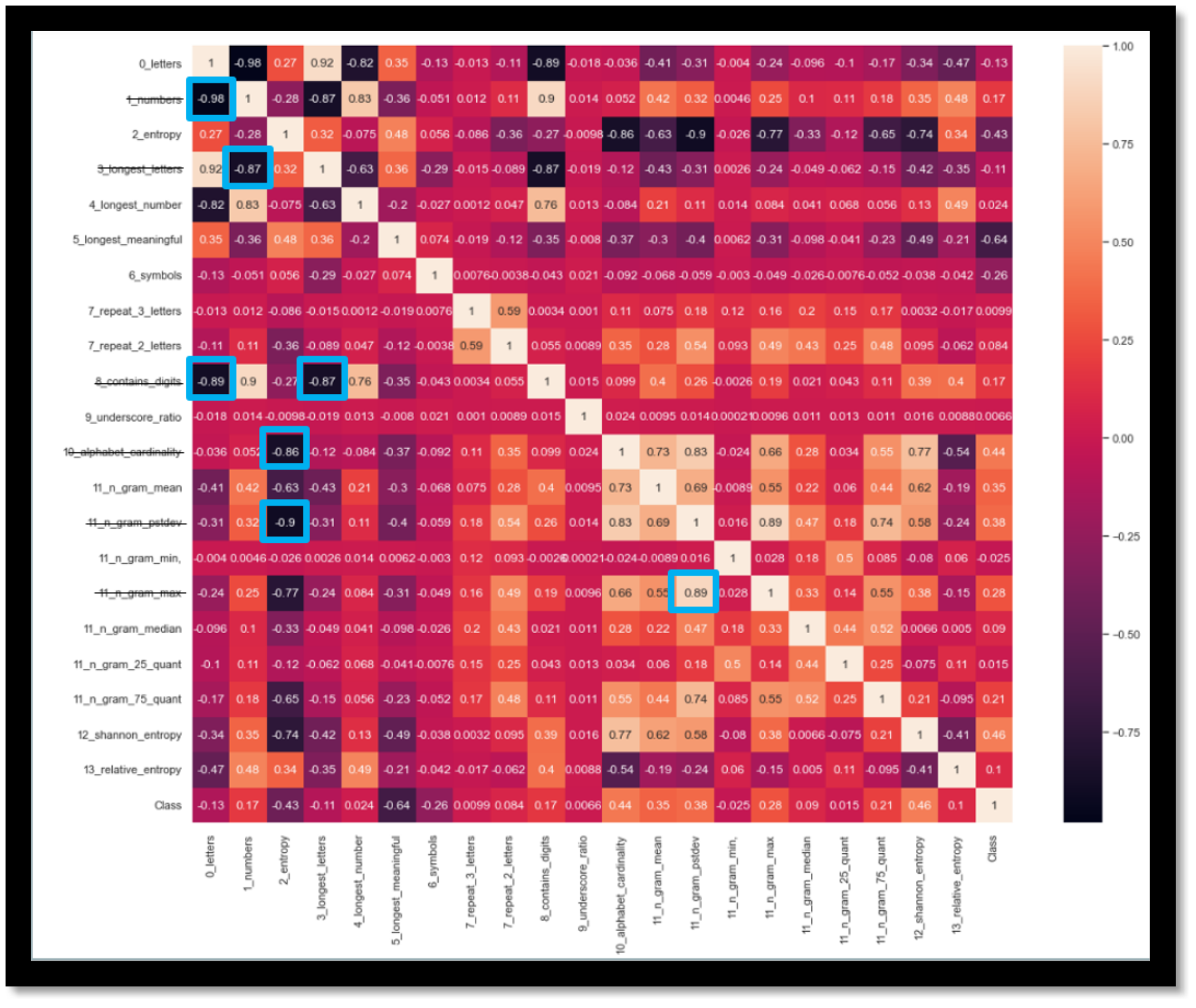

It is the process of extracting the features from the raw data to capture the data properties and give them as input to the ML model. TCPWave's ML Engineering team has obtained some features, such as metric entropy, symbols ratio, etc. The features are further filtered by conducting multicollinearity checks; below is the plot of the features. Click here to know about the feature selection.

Diagram Description automatically generated
Model Training

TCPWave's ML Engineering team used the above data management and feature engineering steps to train and evaluate an XGBoost model.

About XGBoost
  • XGBoost stands for eXtreme Gradient Boosting.

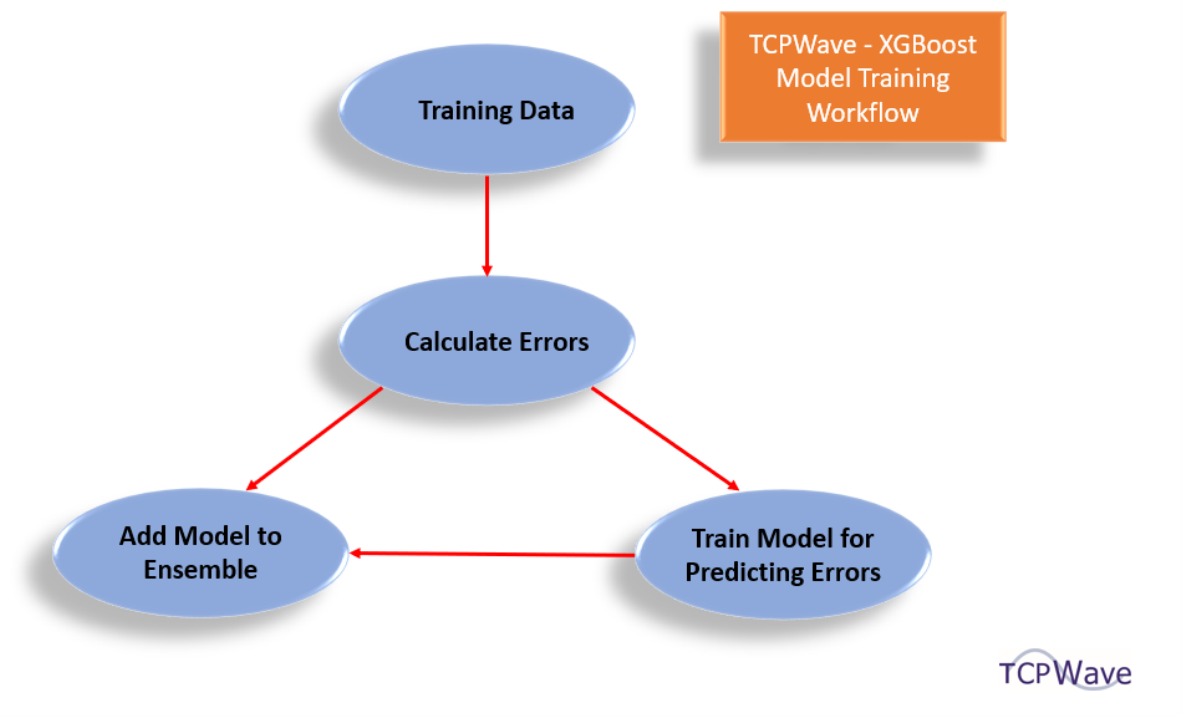

  • It is one of the well-known boosting techniques(ensemble) in ML. The following is the algorithm workflow.
  • TCPWave ML Engineering team has used ASAI 2019 dataset to train the ML model - XGBoost.
Diagram Description automatically generated

To improve the ML model's accuracy, the TCPWave's ML Engineering team has used the RandomizedSearchCV - one of the best hyperparameter tuning methods. In this strategy, each iteration tries a random combination of hyperparameters. It records the performance and returns the combination of the following hyperparameters that gives the best performance:



learning_rate It is the regularization parameter step size to avoid overfitting. It shrinks feature weights in each boosting step.
n_estimators It is the number of trees that is boosted.
max_depth It is the maximum depth of the decision tree.
colsample_bytree It is the fraction of features selected randomly from all the features.
subsample It is the ratio of training instances. (Example: 0.5 means 50% data used before growing trees)
Model Evaluation

Based on the best hyperparameter combination, the XGBoost's innovative features and algorithmic optimizations rendered an accuracy close to the Atlantis model.

Note: Atlantis is a hybrid model whose deep learning architecture is designed using Convolution Neural Networks (CNN) layer and a Long- and Short-Term Memory (LSTM) layer in parallel.



Percentage (%)

Accuracy It represents the number of correctly classified data points over the total number of data points. 93.66
Precision It is the ratio of true positives to the sum of true positives and false positives. 94.54
Recall It is the ratio of true positives to the sum of true positives and false negatives. 95.26
AUC It is the score representing the area under the curve of ROC (receiving operating characteristics) and is the measure of the ability of a classifier to distinguish classes. 93.15
F1 score It is the harmonic mean of precision and recall. 93
Configuring XGBoost Model in TCPWave IPAM

XGBoost Model is categorized as an ML model for anomaly detection in TCPWave IPAM. To configure it:

  1. Create a Network Security Monitoring (NSM) Template, and enable the Anomaly Detection option.
  2. Associate the NSM Template with one or more DNS appliances. An NSM Templates can be associated with the following types of appliances:
    • ISC BIND Authoritative appliances with recursion enabled
    • ISC BIND Cache appliances
    • Unbound Cache appliances

    Also, an NSM Template can only be associated with an appliance in the same Organization as the Template.

Detailed information on these two configuration steps is provided in the subsections below.

Create an NSM Template
  1. Go to Network Management > DNS Management > DNS Security > DNS Threat Management.
  2. Select the NSM Templates tab, and then Add .
  3. On the NSM Configuration tab, enter values as needed, including the following:
    1. Select the organization from the drop-down.
    2. Enter the Template Name.
    3. Enter the Network Interface name, such as eth0.

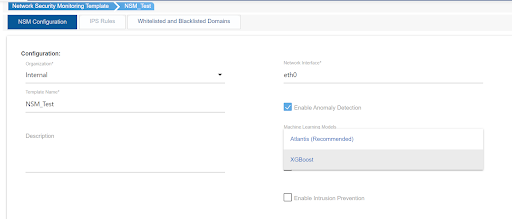

    4. Enable Anomaly Detection. The system displays the following Machine Learning models drop-down:
      1. Atlantis
      2. XGBoost
      3. Diagram Description automatically generated
    5. Select XGBoost model.
    6. (Optional) Select Enable Intrusion Prevention.
    7. (Optional) Enter Rule Variables for source and destination IP addresses and ports used in rules.
    8. Select OK.
Associate an NSM Template with a DNS Appliance
  1. Go to Network Management > DNS Management.
  2. Select an Appliance Name to edit that Appliance's configuration.
  3. In the Template Attributes section, select an NSM Template.
  4. Select OK.
Anomaly Detection Service

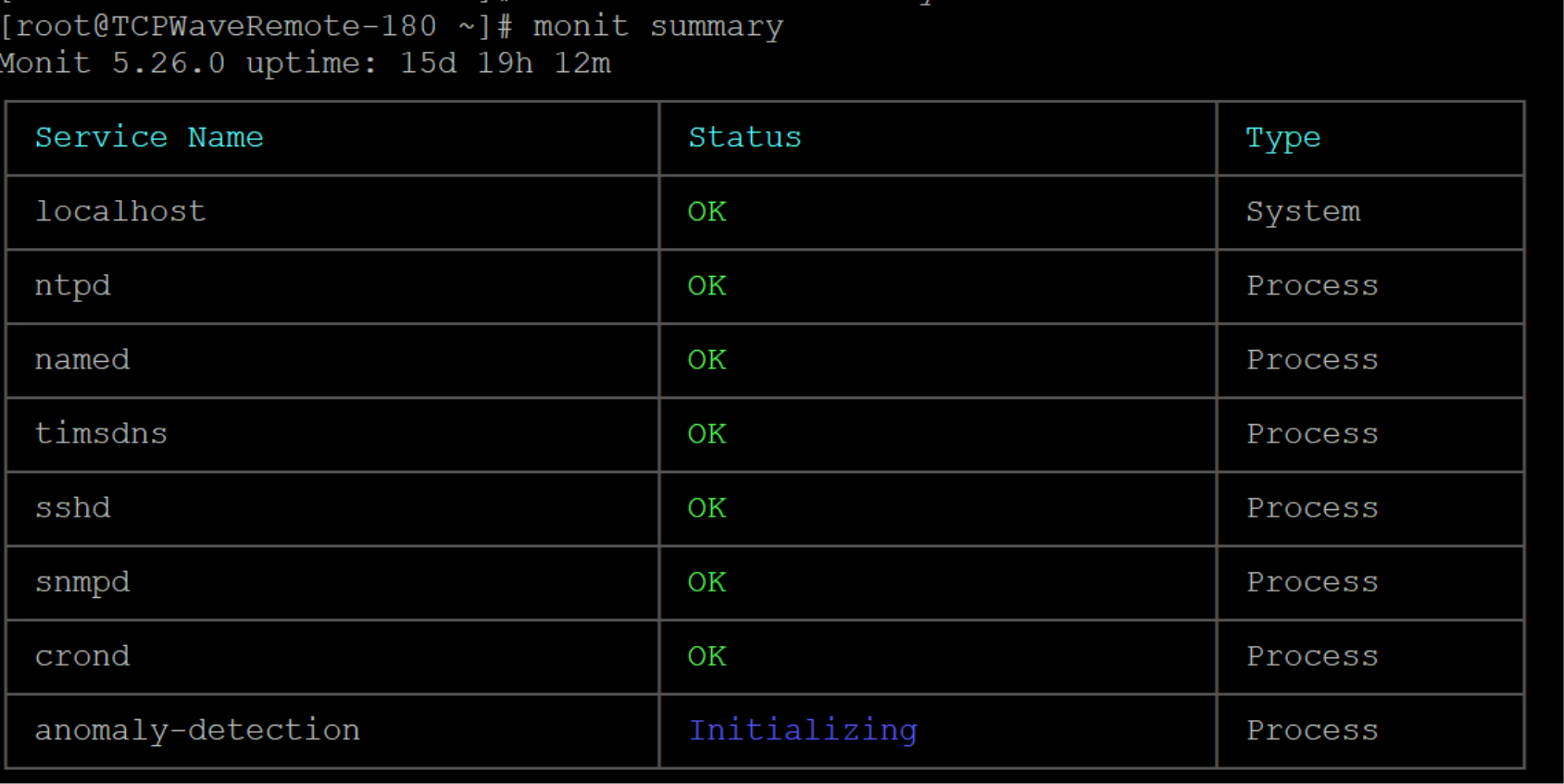

  1. The system now initializes the anomaly-detection service as shown:
  2. Diagram Description automatically generated

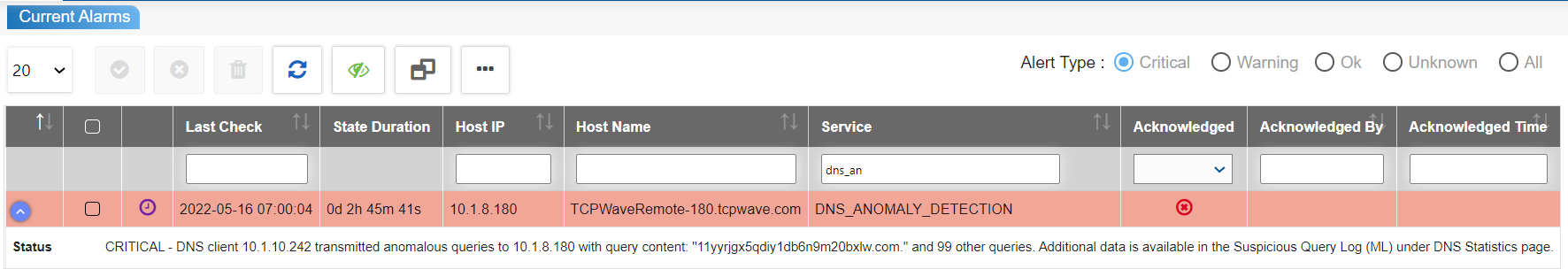

  3. The updated python script from the path /opt/tcpwave/timsdns/anomalydetection/ sniffs the traffic and logs the suspicious traffic in the path: /opt/tcpwave/timsdns/logs/tcpwave-anomaly-detect.log and generates the alerts in the Current Alarms section of IPAM as shown:
  4. Diagram Description automatically generated
  5. To block the anomalous traffic, the network administrators can enable the following global options:
    1. Automatically block anomalous traffic on DNS caches: By default, this global option is set to No; you must set it to Yes to block the anomalous traffic.
    2. Anomalous traffic blocking methodologies using either Suricata IPS or DNS Blackhole mechanism.
  6. Once the above global options are set to Yes, you can remove the blocked sources after the specified time interval (hours) using DNS Network Security Monitoring Autoblock Purge Interval. By default, the time interval is 24hrs.

The never-ending battle persists with the complexity of the threats changing as quickly as innovation grows. Many organizations are working hard to overcome DNS anomalies by introducing new configurations or developing in-house ML models. Hence, the organizations look forward to having a framework that ensures all the facets of the security ecosystem are safe and secure. TCPWave's XGBoost model is one of the best solutions to detect and mitigate DNS anomalies. For a demo, contact the TCPWave Sales Team


FANCI: TCPWave's ML Engineering team obtained some of the features using this system.



Letters Ratio The ratio of the number of letters to the total number of characters.
Digits Ratio The ratio of the number of digits to the total number of characters.
Metric Entropy Shannon's entropy is divided by string length.
Longest letters string ratio The ratio of the number of consecutive words to the total number of characters.
Longest number string ratio The number of consecutive numbers to the total number of characters.
Longest meaningful word ratio The ratio of the meaningful word (obtained enchant python library) to the number of string characters.
Symbols ratio The ratio of the number of symbols in the string to the length of the string.
Repeat 3 Letters Count of the words that are repeated thrice.
Repeat 2 Letters Count of the words that are repeated twice.
Contains Digits One if contains digits else 0.
underscore_ratio The ratio of the number of underscores to the number of letters.
alphabet_cardinality Returns the total number of characters in the query.
n_gram_frequency_dist Returns a list of following: [mean, standard deviation, min, max, median, 0.25 quantile, 0.75 quantile]
shannon_entropy Calculates Shannon entropy for data.
relative_entropy Calculates relative entropy for data.
